Knowledgeware - Document Template Creation

Nur Ain

Hi, so I've been working on the assembly/product template and created a standard unit with driven geometric and parameters using formula, rules and design table (CATIA V5). Now I need the template to be able to instantiate by using 'Document Template Creation'.

However, few problems occurred.
1. I cannot select my geometrical set that I created as the inputs in 'Document Template Definition'
2. i tried selecting external references and new axis system as my inputs, but once i instantiate the product doesn't snapped to the new geometric inputs

Hope I can find the solution to these through any of you. Much appreciated, thanks.

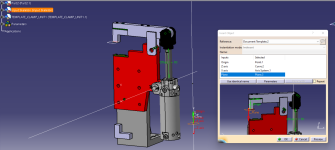

  • PKT_Instantiation.png
    306 KB · Views: 2
  • PKT_clampunit.png
    268.6 KB · Views: 2
Last edited:
